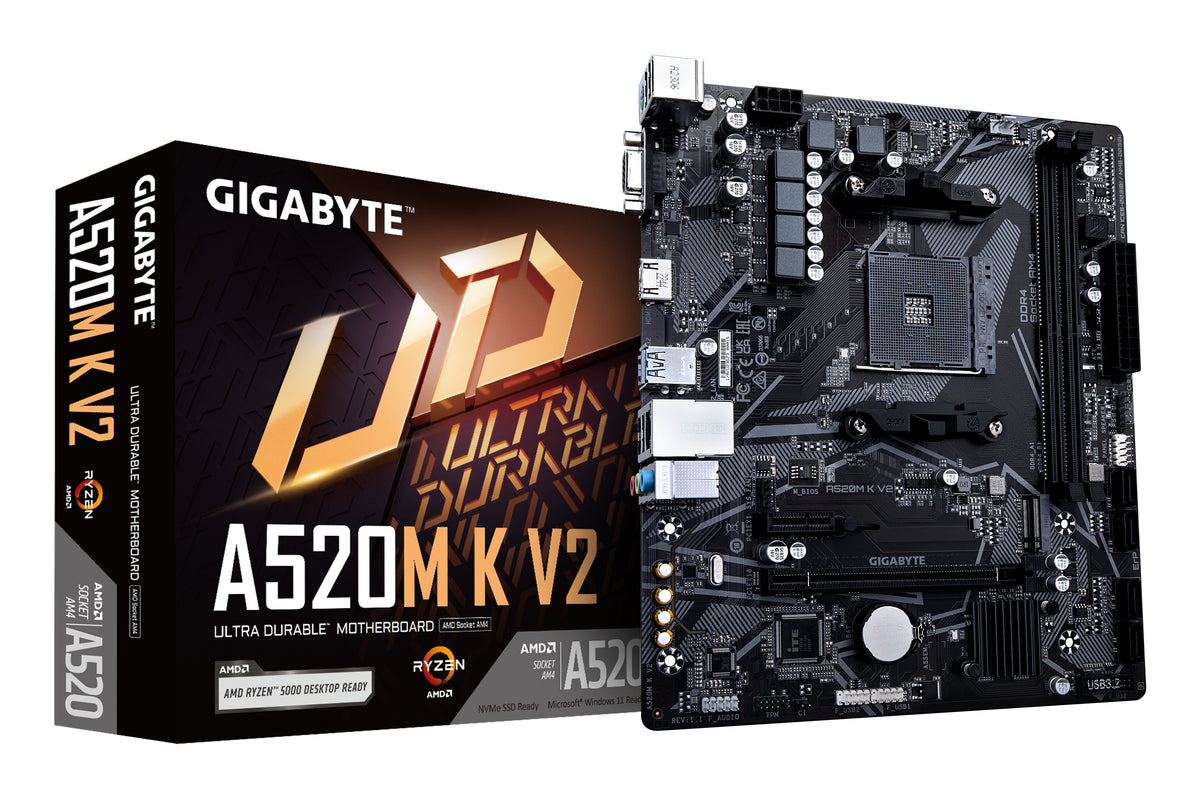

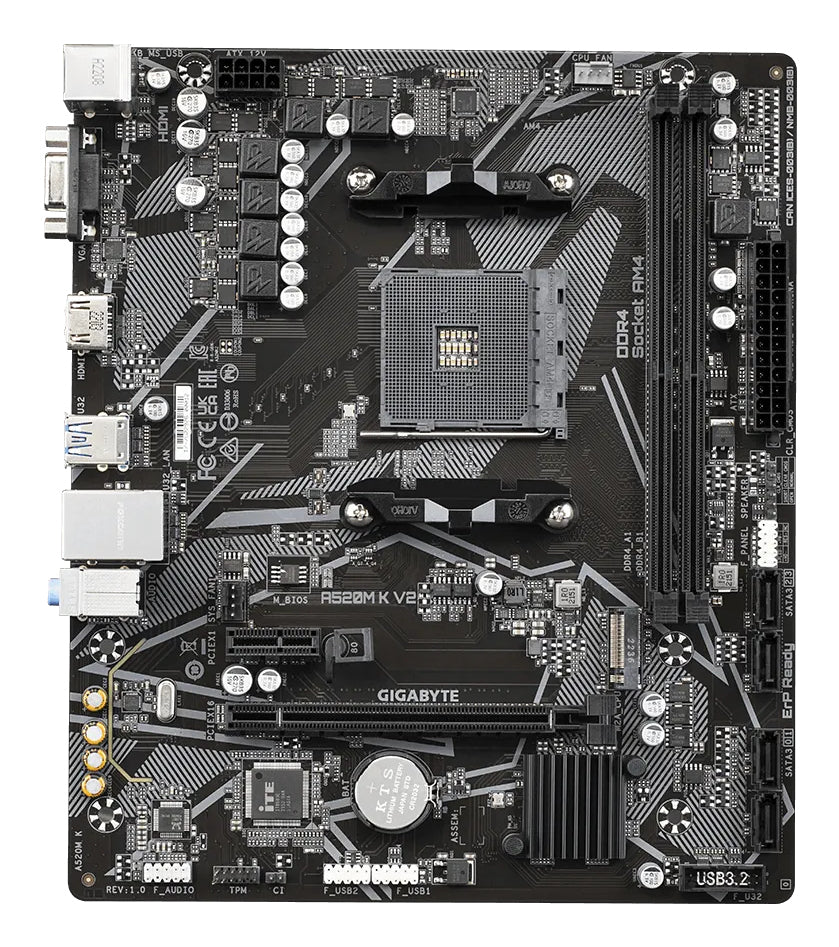

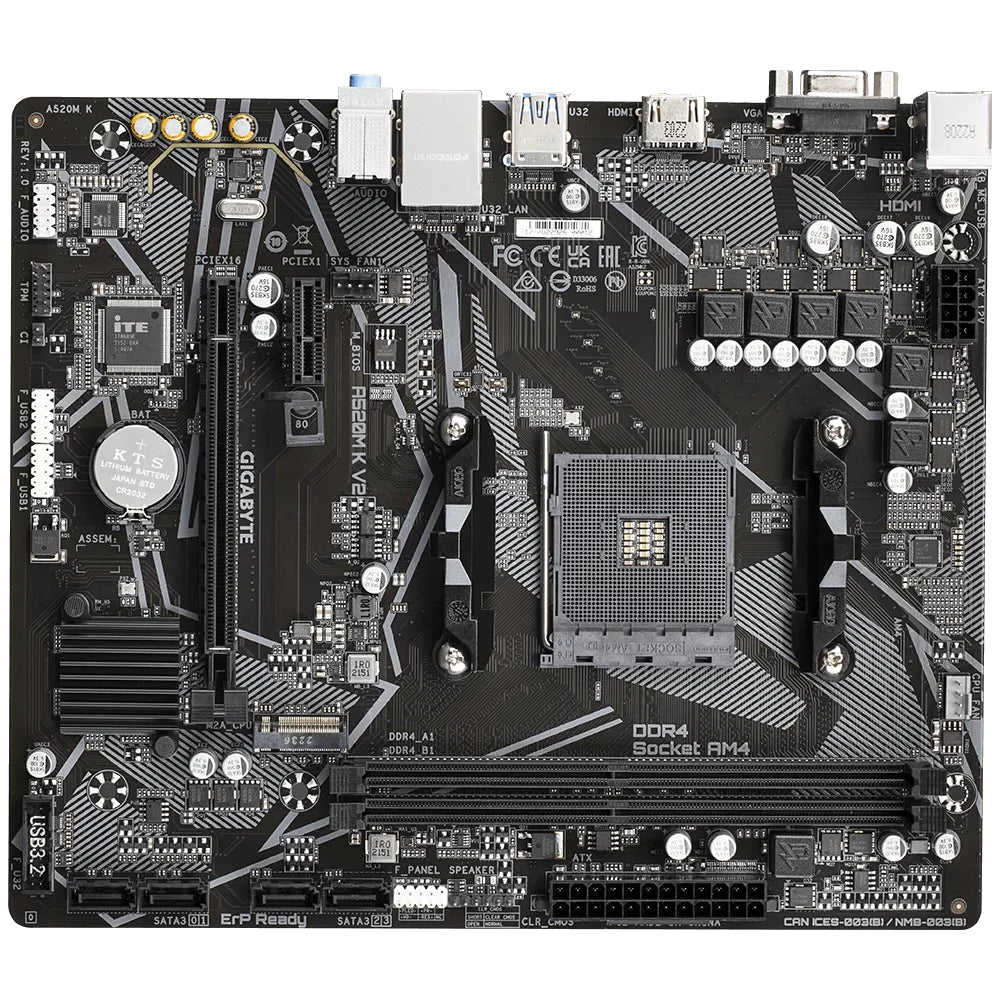

GIGABYTE A520M K V2 AM4 Micro-ATX Motherboard
Build a fast, dependable system without overspending. The GIGABYTE A520M K V2 is a compact Micro-ATX motherboard engineered for solid everyday performance, essential gaming, and home or office productivity. Built on the AMD A520 chipset, it delivers full support for AMD Ryzen™ 5000, 4000, and 3000 Series processors, offering a budget-friendly foundation for your next custom PC assembly.
Key Features
-
AMD AM4 Socket Support: Ready out of the box for AMD Ryzen™ 5000, 4000 G-Series, and 3000 Series desktop processors.
-
Dual-Channel DDR4 RAM: 2x DIMM slots supporting up to 64GB DDR4 memory at speeds up to 5100MHz (O.C.) with XMP support.
-
Ultra-Fast Storage: Includes an NVMe PCIe 3.0 x4 M.2 slot supporting up to 32Gb/s transfer speeds alongside 4x SATA 6Gb/s ports.
-
High-Speed Connectivity: Realtek® GbE LAN with bandwidth management for stable, low-latency network performance.
-
Smart Fan 5 Cooling: Multiple temperature sensors and hybrid fan headers with FAN STOP technology keep your system silent and cool under load.
-
Ultra Durable™ Construction: Anti-Sulfur resistor design and solid power delivery components ensure long-term durability and hardware longevity.
-
Integrated Display Outputs: Features HDMI and D-Sub (VGA) ports for easy multi-display setups using APUs with integrated graphics.
Technical Specifications
| Feature | Specification |
| Form Factor | Micro-ATX (22.6 cm x 19.5 cm) |
| CPU Socket | AMD Socket AM4 |
| Chipset | AMD A520 |
| Memory | 2 x DDR4 DIMM (Up to 64GB), Dual Channel |
| Expansion Slots | 1 x PCIe 3.0 x16, 1 x PCIe 3.0 x1 |
| Storage | 1 x M.2 slot (PCIe 3.0 x4/x2 & SATA mode), 4 x SATA 6Gb/s |

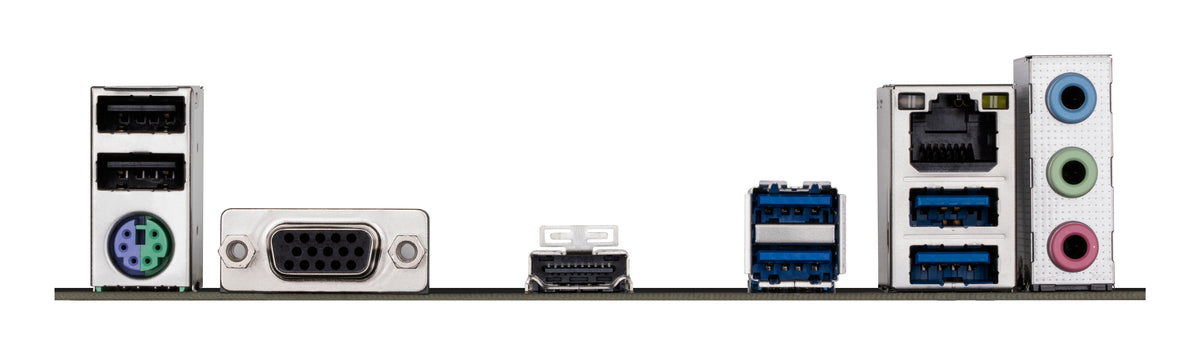

| Back Panel I/O | 4 x USB 3.2 Gen 1, 2 x USB 2.0, 1 x HDMI, 1 x D-Sub (VGA), 1 x RJ-45 GbE LAN, 3 x Audio Jacks, 1 x PS/2 Mouse/Keyboard |
| Audio | Realtek® High Definition Audio CODEC (7.1-Channel) |
What’s in the Box
-
GIGABYTE A520M K V2 Motherboard
-
I/O Shield
-
2 x SATA Cables
-
Quick Installation Guide & Driver Disc
